City of Keller TX - Bates St Public Art Project installed 8/17/2023

Materials: Brushed alloy 316 stainless steel, black dyed concrete polished to reveal aggregate.

Rendering for submission to the City of Keller -Bates St Public Art Project

Materials: Stainless Steel & dyed black concrete

Custom 3 leg console curves to conform to the backs of mirror image sofas. Turned legs transition to square at top with mitered sub-apron creates a dramatic curvilinear flow, finished with bullnose top and bottom edge treatment.

Size: 68 1/2”L x13”D x 37”h Top material: Birdseye maple

Base material: Blackened steel w stainless steel connecting rods

Figured walnut = red wine, Curly maple = white wine

Blackened steel = whiskey / scotch, Stainless = clear liquors

Size: 55”L x 16”D x 32”h

Campfire “An Artist Christmas” auctioned fall 2022

3-D category 1st place

Waterfall 1-peice walnut desk w/ return and matching back wall credenza with flanking bookshelves. Crotch walnut from 3 sequence slabs, steel drawer fronts & desk structure, smoked glass shelves and privacy skirting on desk

Stainless steel stantions and handrail for life safety improvements in functioning church in 2019. Design by the firm of Hahnfeld Hoffer and Stanford architect Lee Hill AIA. Fabrication and installation by Thomas Diel Designs.

Reception desk installed 2019. Rift & Qtr cut white oak solids and veneers w Silestone tops by Joey Gallant

End matched water oak (in the red family off the TX coast w salt water mineral deposits) slab tops w/ curly maple bowties filled w/ seven gallons of epoxy. Base fabricated w I beam columns + channel top & btm supports and mild steel angle.

Size: 18’L x 5’w x 30”h

View of I beam columns, channel top & btm plinths w/ angle table supports. Wire management for power & data troughs w custom wire management column of smoke plexi and aluminum angle.

Shop photo of in-house made slab flipper being used on Pacheco Koch Water Oak slabs 5’ wide for scale. Second end matched slab in background for a table 18’L x 5’w

Top book matched Pacific White Burl Oak w/ birdseye maple bowties. Faceted tapering edges to mimic to drill mangled at burl

Base hot & cold worked 1018 cold rolled steel formed to mimic helical twist bit column w stainless steel adjustable feet.

Bur white oak top w crotch figure w inset maple bowties. Base of steel and stainless steel. Photo taken at my home prior to company move.

Desk Bur White Oak Top(from Trinity River) w/ curly maple bow ties. Three legged base of steel and stainless steel.

Credenza white oak w bread board ends & flat file drawer w steel base.

106”L x 24”D x 37”H Brushed stainless steel arches, steel channel legs and horizontal members with ebonized birdseye maple top rails and lower leg pilasters with glass runner centered in top

72”L x 42”W x 31 1/2”h with Hickory / Peacan two pc top with walnut bowties. Legs hickory w/ walnut feet tenoned up into hickory/pecan. Apron and leg support mild steel.

Commissioned to Micheal Pavlovski Sculpture,Fort Worth TX

Lost wax mold work by Micheal Pavlovski T Diel silicon bronze sheet: Cut, weld, fab and finish.

End Table - 2nd of 2 available. 20”dia x 24”h. Birdseye maple, blackened steel, aluminum, glass top, motor cycle disc brake donated by Scott Vannorsdel Architect. Tannhausergates reference from Bladerunner / Roy’s monologue.

End Table 2nd of 2qty available. 20”dia x 24”h. Black walnut, stainless steel, blackened steel, glass top, motorcycle disc brake courtesy of Gannon Gries AIA. Tannhausergates reference Blade Runner with Roy’s monologue

Matching pair of indoor wall mounted sconces.

9”W x 13”D x 37”h Birdseye maple, blackened and stainless steel PAR 16 LED w UL light socket.

Free standing shelving 72”L x 14 1/2”D x 61 1/2”h. Water Oak columns, steel shelves w clear coat w aluminum angle supports fr & bk, stainless steel X cable shear bracing. Breaks down into smaller components for moving / relocation.

Pedestals 17”L x 14”D x 40”H. Solid walnut steel, aluminum, leather

Matching pedestals 14”dia x 40”h. Solid walnut, blackened steel, stainless steel.

Matching end tables 2qty available. 20”sq x 29”h Walnut, steel, leather top surface

Foyer Table 36”dia x 30 1/2”h Blackened steel, stainless steel, glass top

Demiloon console table 72”L x 13”D x 29”H. Blackened steel, stainless steel, top in either Azure 3/8”th blue glass or laminated cow design plexiglass

Coffee table based on the revolutionary timeless designs of the Swiss engineer Robert Maillart. 40”Sq x 17 1/2”H Blackened steel, concrete, aluminum, rubber corner protectors w glass top

42”Sq x 16”H Walnut and Purvian walnut solids w leather inset top. Blackened steel legs w stainless steel X brace. Stainless steel shelf closing drawers w hidden compartment

108”L x 50”W x 30”H Spalted maple solid top moved apart at split to let in glass top center runner. Base steel, stainless steel w stainless cables

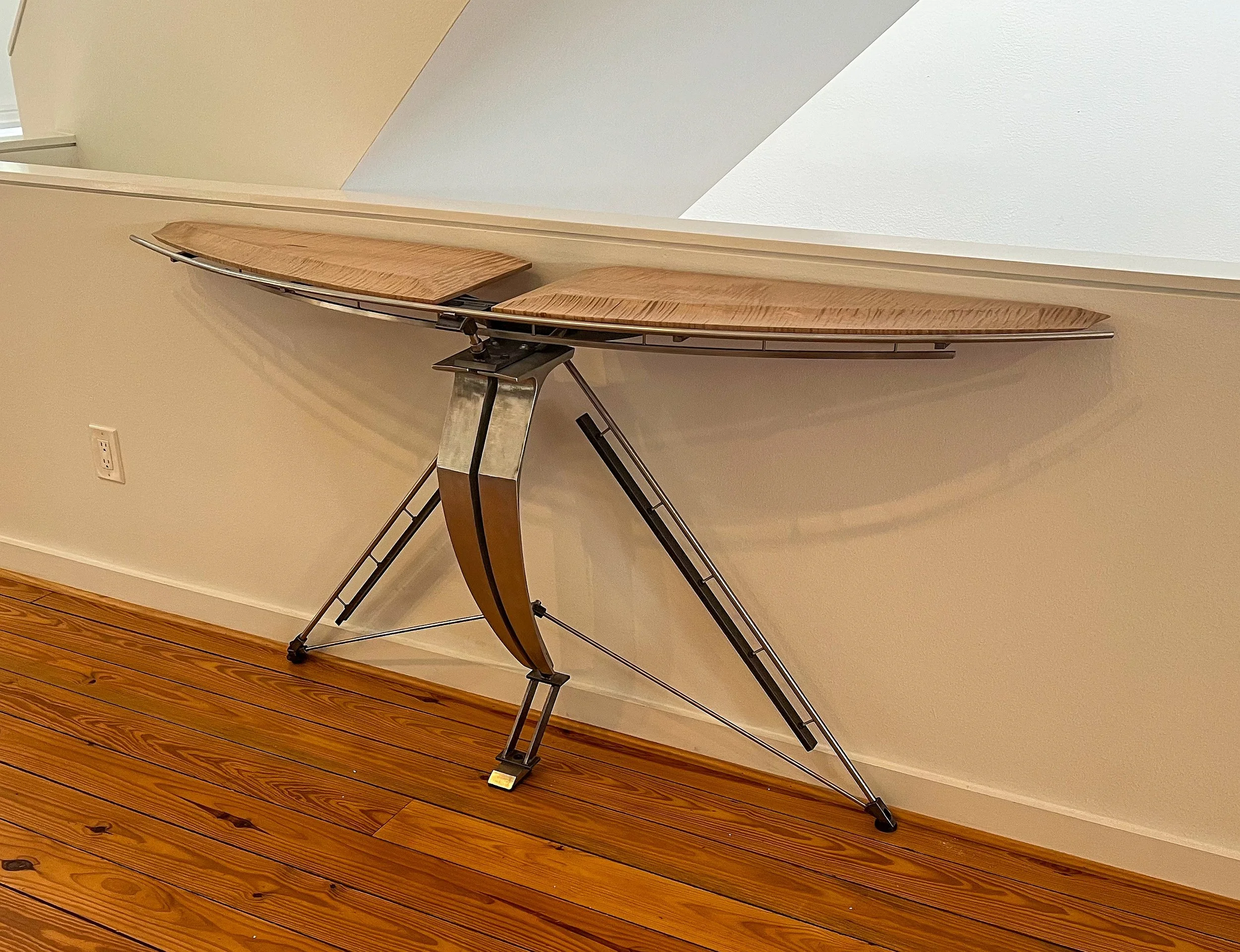

Wall mounted console table series of 5 qty each with individual characteristics. Bookmatched walnut top, sand cast and extruded aluminum, stainless steel

Custom shelving system for oversized art books of varying sizes. 10’L x 8’H x 18”D. Reverse knife edge laminated baltic birch ply shelves w steel and stainless steel.

Series of 2qty three legged dining tables. 52”across the hexagon - 60” from point to point. Three section solid cherry top, blackened steel and stainless steel base

42”Sq x 31”H Blackened Steel, stainless steel, 75W halogen bulb w 12volt system, globe / bowel by others

Wall mounted monomast table 60”Lx 13”D x 39”H. Makore qtr figured solid top w/ blackened steel and stainless steel base

In the Baird family collection 62”L x 17”W x 17”H w working turbine doors. Custom cast hollow concrete abutments w/ blackened steel, aluminum, rubber, with glass top

Second version in the Hare collection. 18”dia x 29”H

Modern interpretation of a Biedemeyer styled three legged table but incorporating steel legs into the design. Blackened steel with cherry veneered sunburst top & shelf. Hidden compartment w lock.

20”dia x 22 3/4”H End Table w secret compartment. Curly maple solid ebonized legs, clear quarter figured maple veneer sides, stainless steel cross stretcher, aluminum reveal band, granite top

Variations on a theme: Haus dresser 47 1/2”w x 21 1/2”D x 51 3/4”h. Jewelry Haus 5 drawer 10 1/2”W x 7”D x 10”H. Jewelry Haus 4 drawer each have walnut legs, bookmatched curly maple drawer sides, aluminum drawer btms and tops.

Various tables showing tapering diamond leg seen throughout many years of making.

Burl maple base w steel cross stretchers feet, stainless steel support rods w/ laminated 3Form & Plexiglas top. 25”w x 18”d x 23”h

Custom stainless steel, walnut shelf w back panel & glass top console to match Ken Voice hutch and customers dining table elements. 78”L x 14”D x 32 1/2”h

84”L x 34”D x 32”H Sand cast aluminum backposts & base struts, leather w foam build up over vacuum formed curve ply seat and back, cast concrete feet.

Completed 2005 71”W x 102”D x 40 1/2”h Shown w child fall prevention sides. Maple, aluminum, leather, fabric.

Jim Beckman donated his sculpture ‘Peleton’ of 6qty abstract cycles leaning into a curve, to the TRWD (Tarrant Regional Water District) on the Trinity River in Edwards Ranch, FT Worth. Drawing and stainless steel; rolling, welding, graining by Thomas Diel Designs

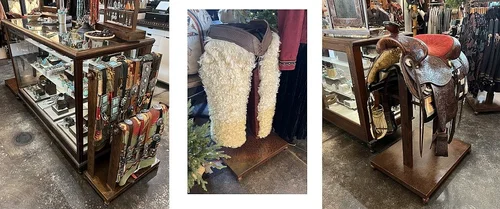

Chap & saddle mounts, blanket stands, clothes & pivoting ear ring racks, tilting mirrors, hat stands and much more. Design by Bennett Partners, Sarah Niemeier, Interior Designer.

Shop shots of steel fabrication of spur mounts, hat stands, display trays and adjustable shelving system just to name a few. Bennett Partners design w Sarah Niemeier Interior Designer point contact.

Before, during, and after photos of Life Safety Improvements by both visual and tactile sensory input w stainless steel tread embeds. Install photo of vacuum router jig and dust collection for error free clean in situ weekend turnaround. BP Bennett Partners - Gannon Gries AIA design, Thomas Diel Designs fab & install

The Hillwood Companies / ATX / Hillwood Air - repair of the bronze maquette commemorating the loss of the 19 members of the Granite Mountain Hotshots in 2013. Work included bead blasting patination back to bronze, TIG brazing & chasing w/ re-patina + wax to match existing.

What would a couple that are both Bio/Chemistry professors top their tree with: A true model of a DNA helix that is a teaching prop when tis not the season.

Form fitted ammonite wall mount weighing 40lbs. Second photo walnut outer frame w steel capture cleats centered on white background panel. Third photo 3-legged walnut and steel pedestal to hold top heavy fossil securely.

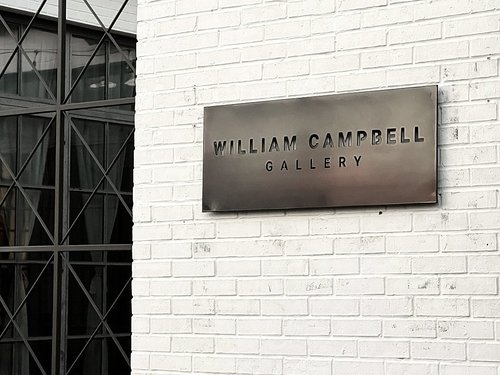

Custom signage of laser cut steel painted black w clear coat

Fort Worth, Texas on Montgomery Blvd in the Cultural District

Custom walnut & leather lectern. Fort Worth, TX

Table 120”L x 40”W x 30”h. Benches 4qty - 67”L x 17”D x 18”H 2014 Live edge walnut slab top w tubular steel base. Benches of sequence matched end slabs w upholstery by Charles Alan Inc.

Designed by Firm 817 - Joe and Tracy Self. Rustic white oak filed w epoxy w custom pickle finish w tube steel base. 144”L x 60”W x 30”H

14qty custom light sconces for this readapted industrial space designed by the firm of HMS (Howard Montgomery and Stegar) w/ Kurt Schlough Interior Designer. Bottom photo taken w my son on revisit 2013.

3D Logo of brushed and polished aluminum during employment as shop foreman / fabricator at Great Lakes Art Studio 1998. Sears Tower Chicago, IL

See Architectural Digest May 2002 for the write-up & better photos. Design by Environ Architecture. While project manager for an ornamental iron company in Chicago I fabricated and lead a team of 3 to install the brass railings, 7qty living & 8qty dining rm faux pilasters, 3qty arched transom room dividers that overlooked Lake Shore Dr. Stephan a Polish master sculptor carved the scarf cut cherry handrail a long with fabricating the dining chairs w many other items for this multi level town home a stones throw Drake Hotel / Magnificent Mile.

12’ 6”L x 6’W x 30”H Concrete, steel, maple, glass insets, aluminum. Photographed by Frank Rogozienski

Mezzanine catwalk and mailbox for this design build after the passing of James Mount Architecture Professor Clemson

My son getting checked out on the numerically controlled independent leg angle roll. Note: Rolling tube - 2 1/4”OD x 11ga alloy 316 stainless steel for Keller’s ‘Bisected Arc’ Bench.

Top left: inverted TIG tack weld up of tapering plinth. Right photo of plinth clamped in Kurt vise awaiting Mckay’s trigonometry to drill compound angular holes with annular cutter. Bottom photo showing complexity of tapered plinth in relationship to other parts.

Panelsaw w miter attachment used to produce multiple identical miter cuts of sign foam (pastel green). In second photo now red curved concrete forms halves ready to bolt together to be cast vertically. See Keller ‘Bisected Arc’ concrete bench tops.

Custom aluminum rotisserie for flipping and up-righting large n heavy table-top slabs in one-man operation. Left photo w/o cross brace cables. Right picture showing epoxy work on edge w water oak slab upright.

Installation photo showing Bessey K body clamps as temporary rigging. Life safety improvement of mezzanine level w stainless steel stantions and handrail. Architects Hahnfeld, Hoffer and Stanford - Lee Hill AIA

Refurbishment of loose and broken double doweled glue joints by means of waxing joint to make glue resist, followed by epoxy injection & clamp-up. Custom fabbed in-house steel corner brackets w/ hanger bolts and compression nuts to add rigidity where typical wood corner blocks would not fit due to curvature of front & bk rails.

Bandsaw table set on angle with curve cauls to support cutting of curved top to produce knife edge. Beats climb cutting w router on tear-out prone figured wood.

Getting the final twist to desired outcome by unconventionally using Diacro #3 bender on side w rosebud torch persuader to mimic twist bit helical table base for Brian O’Neill’s meeting table
